Specifications
Table Size:
|
10” x 10” (254 x 254mm)
|
Travel (X, Y, Z):
|
12” x 12” x 13” (305 x 305 x 330mm)
|
Spindle Taper:
|
NST No. 30
|
Spindle Speed:
|
150~15,000rpm **30,000 Option
|
Tool Storage Capacity:
|
40 Pcs.- Expandable in the Field to 102 Tools!
|
Tool Change Time (T-T/C-C):
|
1.2 Sec. /2.8 Sec.
|
Rapid Feed (X,Y,Z)
|
2,362ipm (60m/min)
|
Rapid Feed (B)
|
108,000deg./min. (300rpm)
|
Power Requirement:
|
30KVA
|
Features
- Drastically reduces set-up times for small, detailed, highly accurate complex parts
- Amazingly small footprint saves on valuable floor space
- Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
- Ultra high speed rapid feed rates of 2,362ipm
- 2-Station APC with High Speed 4th axis rotary table, DD Motor Driven 108,000deg/min rapids
- High power, high-speed processing Arumatik-Mi CNC with 67 million pulse coder technology
- Powerful 15,000rpm, dual contact spindle – Optional 30,000rpm HSK-E40 spindle Available

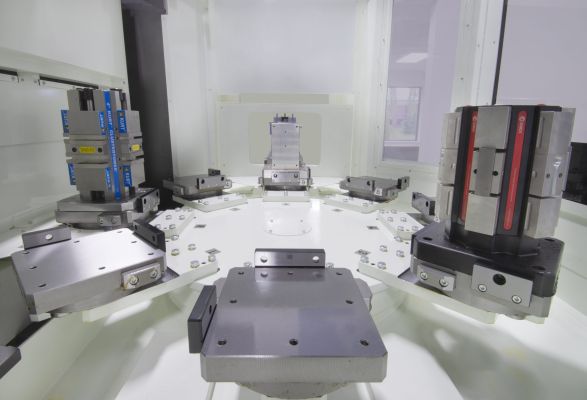

- Optional 10-Station Automatic Pallet Changer and 102 Tool Upgrade available in the field
