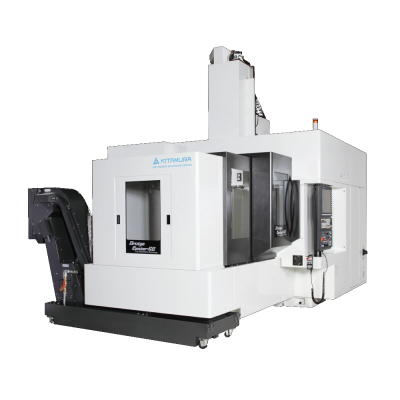

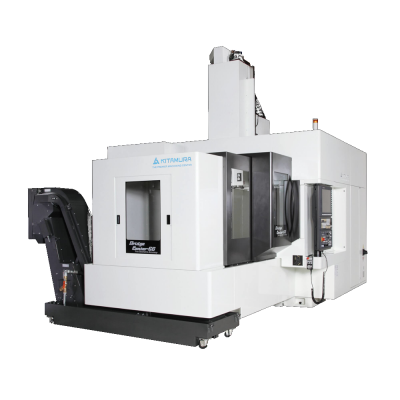

Kitamura Bridgecenter 6G (40 & 50 Taper)

DOUBLE COLUMN MACHINING CENTER
Specifications
Table Size:
35.4” x 70.9” (900 x 1,800mm)
Travel (X, Y, Z):
60.2” x 43.1” x 28.0” (1,530 x 1,095 x 710mm)
Spindle Taper:
NST No. 40
Spindle Speed:
20~20,000rpm Gear Drive, 4-Step
Tool Storage Capacity:
40 Pcs. (60, 80 Opt.)
Tool Change Time (T-T/C-C):
6.6 Sec. /12 Sec.
Rapid Feed (X, Y, Z):
945ipm (24m/min)
Power Requirement:
35KVA
Features
  • Ideal for parts requiring heavier cutting loads and higher levels of precision and accuracy. Excellent for Die/Mold applications.
  • Positioning Accuracy: ±0.000078”/Full Stroke, Repeatability: ±0.000039”
  • Rigid Meehanite cast iron construction with induction hardened solid box ways
  • #40, high speed, heavy duty 20,000rpm, 4-Step Geared, Dual Contact Spindle
  • Double column design provides expansive work envelope and superior rigidity
  • Linear scale feedback in X, Y, Z axes
  • Space saving footprint takes up only 166 total square feet
  • 6,600Lb table capacity

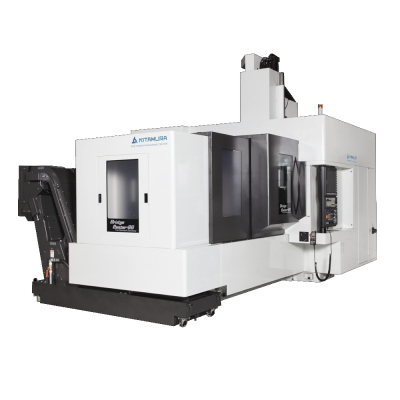

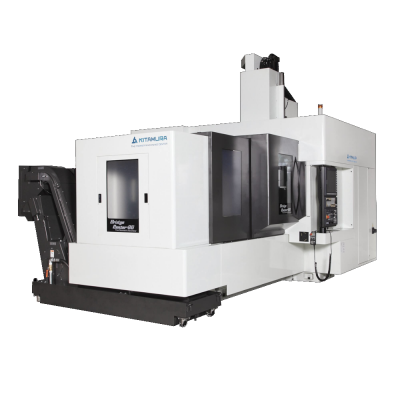

Kitamura Bridgecenter 8G

DOUBLE COLUMN MACHINING CENTER
Specifications
Table Size:
35.4” x 98.4” (900 x 2,500mm)
Travel (X, Y, Z):
80.0” x 43.1” x 28.0” (2,032 x 1,095 x 710mm)
Spindle Taper:
NST No. 50
Spindle Speed:
35~12,000rpm Gear Drive, 4-Step
Tool Storage Capacity:
40 Pcs. (60, 80 Opt.)
Tool Change Time (T-T/C-C):
6.6 Sec. /12 Sec.
Rapid Feed (X, Y, Z):
945ipm (24m/min)
Power Requirement:
45KVA
Features
  • Ideal for parts requiring heavier cutting loads, and parts that require a higher level of precision and accuracy.
    Excellent for Die/Mold applications.
  • Positioning Accuracy: ±0.000078”/Full Stroke, Repeatability: ±0.000039”
  • Rigid Meehanite cast iron construction with induction hardened solid box ways
  • #50, High Speed, High torque 12,000rpm, Dual Contact, 4-Step Gear Driven Spindle
  • Double column design with patented triangular crossbeam provides expansive work envelope and superior rigidity when compared with C-Frame style machines
  • Linear scale feedback in X, Y, Z axes
  • Space saving and compact, the Bridgecenter-8G measures only 137.6″ x 230.9″ (3,494 x 5,866mm) on your floor!
  • 7,700 Lb table capacity allows for the capacity to machine larger and heavier work pieces

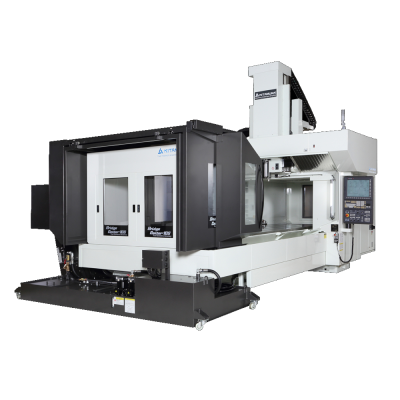

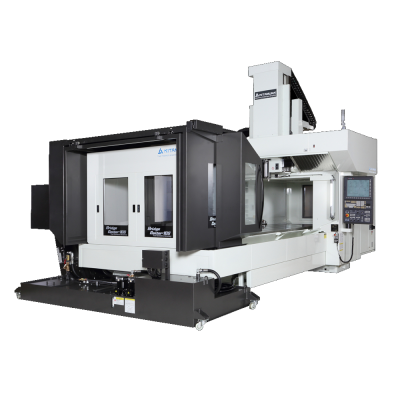

Kitamura Bridgecenter 10G

DOUBLE COLUMN MACHINING CENTER
Specifications
Table Size:
53.9” x 118.1” (1,370 x 3,000mm)
Travel (X, Y, Z):
100.0” x 63.6” x 31.5” (2,540 x 1,615 x 800mm)
Spindle Taper:
NST No. 50
Spindle Speed:
35~12,000rpm Gear Drive, 4-Step
Tool Storage Capacity:
40 Pcs. (60, 80 Opt.)
Tool Change Time (T-T/C-C):
6.6 Sec. /14 Sec.
Rapid Feed (X, Y, Z):
945ipm (24m/min)
Power Requirement:
50KVA
Features
  • Well suited for large part machining requiring increased rigidity and higher levels of precision and accuracy. Perfect for roughing and finishing of large cavities and cores in the die/mold industry.
  • Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
  • Rigid Meehanite cast iron construction with induction hardened solid box ways
  • #50, Gear Driven, High Speed, High Torque 12,000rpm Dual Contact Spindle
  • Patented double column bridge type design provides expansive work envelope and superior rigidity
  • Linear scale feedback in X, Y, Z axes
  • Ultra high speed and high precision contour control for smoother and faster machining.2,800 block/sec. processing speeds
  • 13,300 Lb table capacity provides added benefits for larger, heavier, more powerful machining

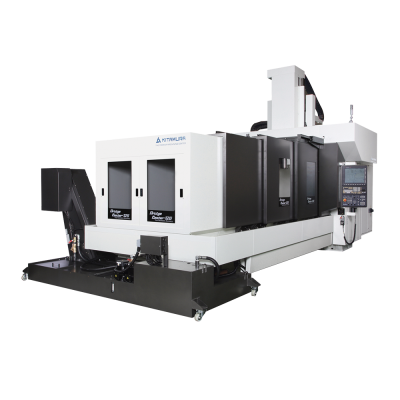

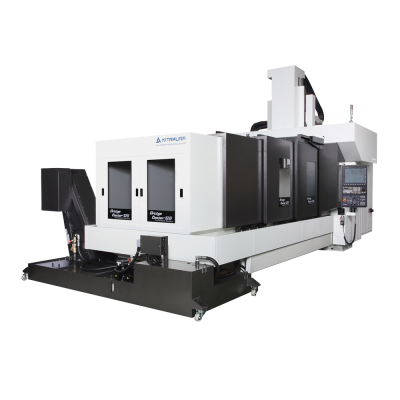

Kitamura Bridgecenter 12G

DOUBLE COLUMN MACHINING CENTER
Specifications
Table Size:
53.9” x 137.8” (1,370 x 3,500mm)
Travel (X, Y, Z):
120.0” x 63.6” x 31.5”
(3,050 x 1,615 x 800mm)
Spindle Taper:
NST No. 50
Spindle Speed:
35~12,000rpm Gear Drive, 4-Step
Tool Storage Capacity:
40 Pcs. (60, 80 Opt.)
Tool Change Time (T-T/C-C):
6.6 Sec. /14 Sec.
Rapid Feed (X, Y, Z):
945ipm (24m/min)
Power Requirement:
50KVA
Features
  • 120″ extended X-Axis stroke offers flexibility in large part processing that requires increased levels of rigidity and higher levels of precision and accuracy.
  • Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
  • Rigid Meehanite cast iron construction with induction hardened solid box ways
  • #50, Gear Driven, High Speed, High Torque 12,000rpm Dual Contact Spindle
  • Patented double column bridge type design provides expansive work envelope and superior rigidity
  • Linear scale feedback in X, Y, Z axes
  • A unique optional 5-axis articulating head can be incorporated for multi angle, complex part machining made easy
  • 13,300 Lb table capacity provides added benefits for larger, heavier, more powerful machining
