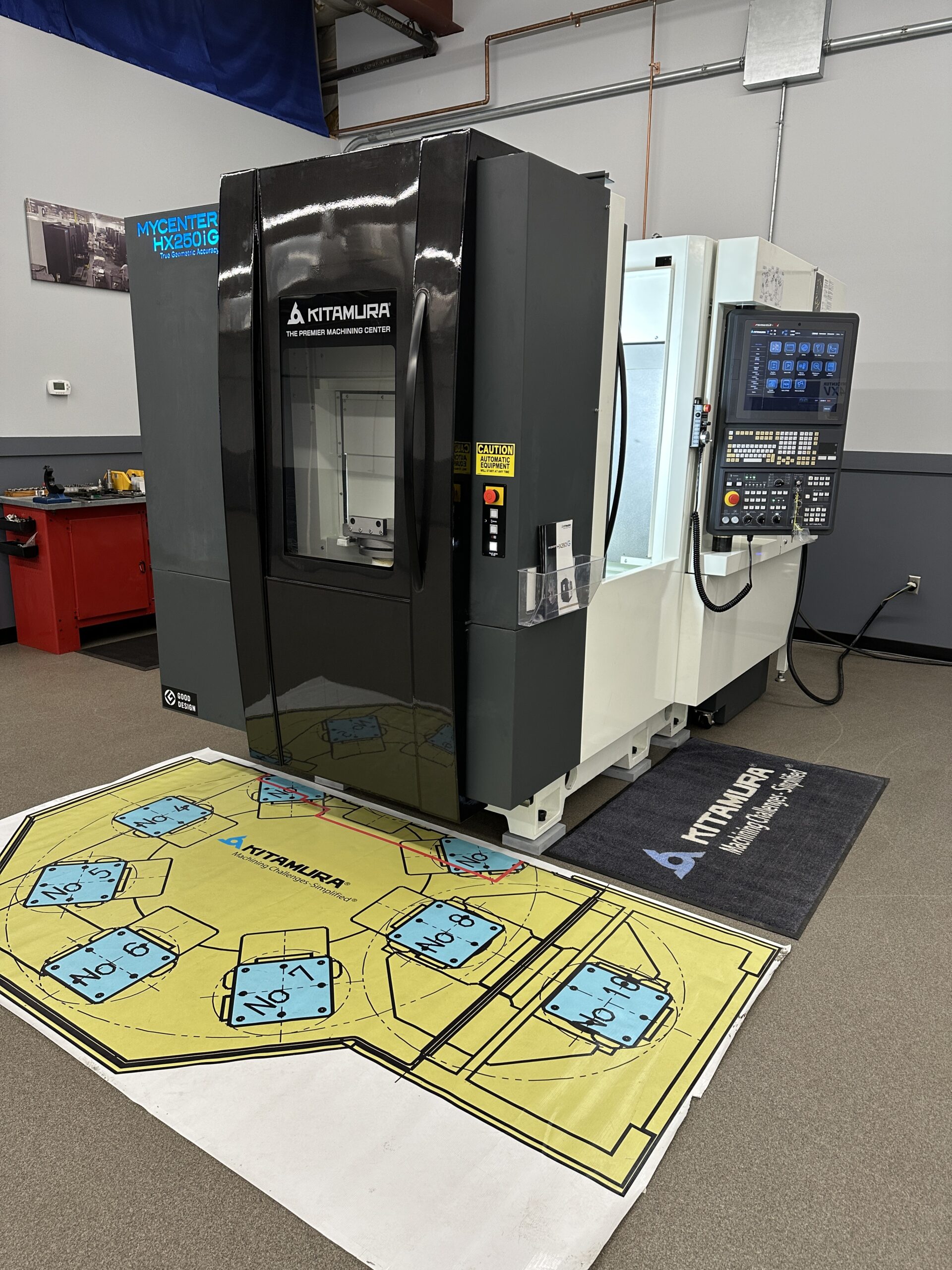

Kitamura Mycenter-HX250iG

HORIZONTAL MACHINING CENTER
Specifications
Table Size:
10” x 10” (254 x 254mm)
Travel (X, Y, Z):
12” x 12” x 13” (305 x 305 x 330mm)
Spindle Taper:
NST No. 30
Spindle Speed:
150~15,000rpm **30,000 Option
Tool Storage Capacity:
40 Pcs.- Expandable in the Field to 102 Tools!
Tool Change Time (T-T/C-C):
1.2 Sec. /2.8 Sec.
Rapid Feed (X,Y,Z)
2,362ipm (60m/min)
Rapid Feed (B)
108,000deg./min. (300rpm)
Power Requirement:
30KVA
Features
  • Drastically reduces set-up times for small, detailed, highly accurate complex parts
  • Amazingly small footprint saves on valuable floor space
  • Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
  • Ultra high speed rapid feed rates of 2,362ipm
  • 2-Station APC with High Speed 4th axis rotary table, DD Motor Driven 108,000deg/min rapids
  • High power, high-speed processing Arumatik-Mi CNC with 67 million pulse coder technology
  • Powerful 15,000rpm, dual contact spindle – Optional 30,000rpm HSK-E40 spindle Available
  • Optional 10-Station Automatic Pallet Changer and 102 Tool Upgrade available in the field

NomuraSwiss NN-32YB3

SWISS STYLE TURNING CENTER
Specifications
Max Stock Diameter:
32mm
Tool Stations:
31
Spindle Speed:
8,000 RPM
Spindle Power:
5.5/3.7 KW
Main Spindle Axes:
4
Back Spindle Axes:
4
Axis Rapid Feed Rate:
30m/min.
Features
  • The NN-32YB3 is a highly-flexible sub-spindle machine with 5 OD tools, 4 static front/back end working tools and 6 live cross drill/mill tools for the main spindle. The back comes standard with 3 static end working tools, 2 OD tools and 2 live drill/mill tools. Both the main and back spindles come standard with a .001 degree C-Axis. A variety of options are available which include a front and back eccentric drill unit, and various combinations of turning and drill/mill units.

Hwacheon CUTEX-160B

CNC TURNING CENTER
Specifications
Swing Over Bed:
550 mm
Max Cutting Diameter:
300 mm
Max Cutting Length:
284 mm
Chuck Size:
8″
Spindle Nose:
A2-6
Max Spindle Speed:
4,500 RPM
Spindle Hole Diameter:
62 mm
Tool Stations:
12
Power Requirement:
20 KVA
Features
  • The CUTEX-160 maintains high precision even during long-term processing by minimizing thermal displacement based on a rigid construction and compact structure.  Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.

YCM NFX400A

4+1 AXIS VERTICAL MACHINING CENTER
Specifications
Table Size:
13.77″ (350mm)
Travel (X, Y, Z):
25.6” (6500 mm) / 20.5” (520 mm) / 18.9” (480 mm)
Spindle Taper:
CT40 (Standard)
Spindle Speed:
12,000 rpm (15,000 rpm Option)
Tool Storage Capacity:
30 Pcs.
Tool Change Time (T-T/C-C):
1.8 Sec. /6.5 Secs
Rapid Feed (X,Y,Z)
1,417imp (36 m/min)
Max Spindle Power
22kW (17.5kW) 30HP (13.5HP)
Power Requirement:
46KVA
Features
  • Multi-Axis Vertical Machining Center
  • Provides Productivity and Flexibility on a high-performance platform
  • Rigid body structure and precision axial motion control ensure repeatable quality
  • Extra wide column base design to ensure cutting rigidity
  • Linear guideways adopted for fast and smooth axial motion
  • Pre-Tensioned ball screws with direct drive motors achieve high torque and low backlash
  • Rotary Table surface is at the same level as the 5th Axis centerline, ensuring machining accuracy

Kitamura Mycenter-3xV

VERTICAL MACHINING CENTER
Specifications
Table Size:
10” x 10” (254 x 254mm)
Travel (X, Y, Z):
12” x 12” x 13” (305 x 305 x 330mm)
Spindle Taper:
NST No. 30
Spindle Speed:
150~15,000rpm **30,000 Option
Tool Storage Capacity:
40 Pcs.- Expandable in the Field to 102 Tools!
Tool Change Time (T-T/C-C):
1.2 Sec. /2.8 Sec.
Rapid Feed (X,Y,Z)
2,362ipm (60m/min)
Rapid Feed (B)
108,000deg./min. (300rpm)
Power Requirement:
30KVA
Features
  • Ideal for machining small to medium sized work pieces
  • Large work envelope within a uniquely compact design
  • Thermally stable, heavily ribbed stiff cast Meehanite C-Frame construction
  • #40, 41HP, high speed 15,000rpm built-in spindle offers high speeds and heavy duty cutting capabilities
  • Standard scraper type chip conveyor can be installed on both right or left-hand side of the machine
  • High power, high-speed processing Arumatik-Mi CNC with 67 million pulse coder technology
  • Standard 30 tool high speed ATC
  • High Speed Processing Kitamura Mi-Pro CNC controller offers up to 16x faster processing speeds!

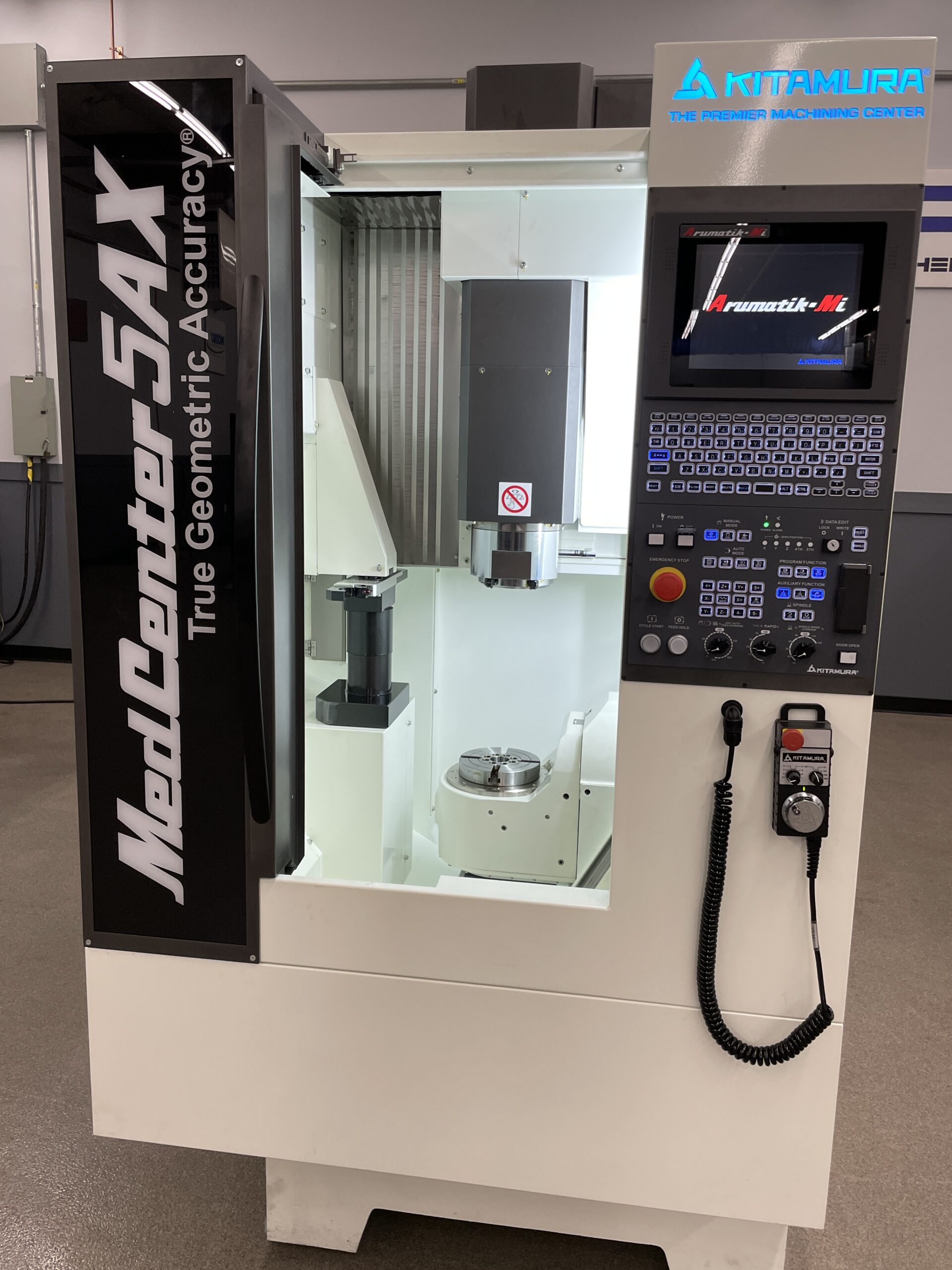

Kitamura MedCenter5AX

5-AXIS VERTICAL MACHINING CENTER
Specifications
Table Size:
6.7” (170mm) round dia.
Travel (X, Y, Z):
10” x 13” x 13”(254 x 330 x 330mm)
Travel(A, C):
-120~+120 Degrees/0 ~ 360 Degrees
Spindle Taper:
HSK-E40
Spindle Speed:
300~30,000rpm
Tool Storage Capacity:
40 Pcs.(120 Optional)
Tool Change Time (T-T):
1.5 Sec.
Rapid Feed (X, Y, Z):
2362ipm (60m/min) X & Y, 1969ipm (50m/min) Z
Rapid Feed (A, C):
36,000 deg. /min (100rpm), 72,000 deg./min (200rpm)
Power Requirement:
30KVA
Features
  • Ideal for ultra-high precision simultaneous 5-axis machining of small medical parts, micro machining
  • Positioning Accuracy: ±0.000079” Full Stroke, Repeatability: ±0.000039”
  • Compact design fits within a 4′ x 7′ footprint
  • Powerful high speed 30,000rpm HSK-E40 25HP Direct Drive Spindle
  • 40 tool, fixed pot ATC with maximum tool weight of 4.4Lbs
  • High accuracy package – Linear & rotary scales, 67 million pulse encoder technology, 16mm pitch ballscrews
  • Optional 12-station APC available (11″ x 11″ (280 x 280mm) table)
