JC10

YCM ALLIANCE JC10

VERTICAL MACHINING CENTER
Specifications
Table Size (APC):
44.1” x 20.5” (1,120 x 520mm)
Travel (X, Y, Z):
40.2” x 20.5” x 21.3” (1,020 x 520 x 540mm)
Spindle Taper:
BBT40
Spindle Speed:
12,000 rpm (15,000 rpm)
Max Spindle Power (opt.):
18.5kW (18.5kW) 25HP (25HP)
Tool Magazine Capacity (opt.):
24T (30/40T)
Machine Weight:
11,795 lb (5,250kg)

JC16

YCM ALLIANCE JC16

VERTICAL MACHINING CENTER
Specifications
Table Size (APC):
68.1” x 29.9” (1,730 x 760mm)
Travel (X, Y, Z):
64.2” x 30” x 27.6” (1,630 x 762 x 700mm)
Spindle Taper:
BBT40
Spindle Speed:
12,000 rpm (15,000 rpm)
Max Spindle Power (opt.):
18.5kW (30kW) 25HP (40HP)
Tool Magazine Capacity (opt.):
24T (30/48/60T)
Machine Weight:
24,251 lb (11,000kg)

CF4

YCM ALLIANCE CF4

4+1 AXIS VERTICAL MACHINING CENTER
Specifications
Table Size (APC):
Ø 14.96”/0.47” (Ø 380 x 12mm)
Travel (X, Y, Z):
27.56” x 20.47” x 18.9” (700 x 520 x 480mm)
Spindle Taper:
BBT40
Spindle Speed:
12,000 rpm (15,000 rpm)
Max Spindle Power (opt.):
22kW (17.5kW) 30HP (13.5HP)
Tool Magazine Capacity (opt.):
30T (40/60T)
Machine Weight:
13,669 lb (6,200kg)

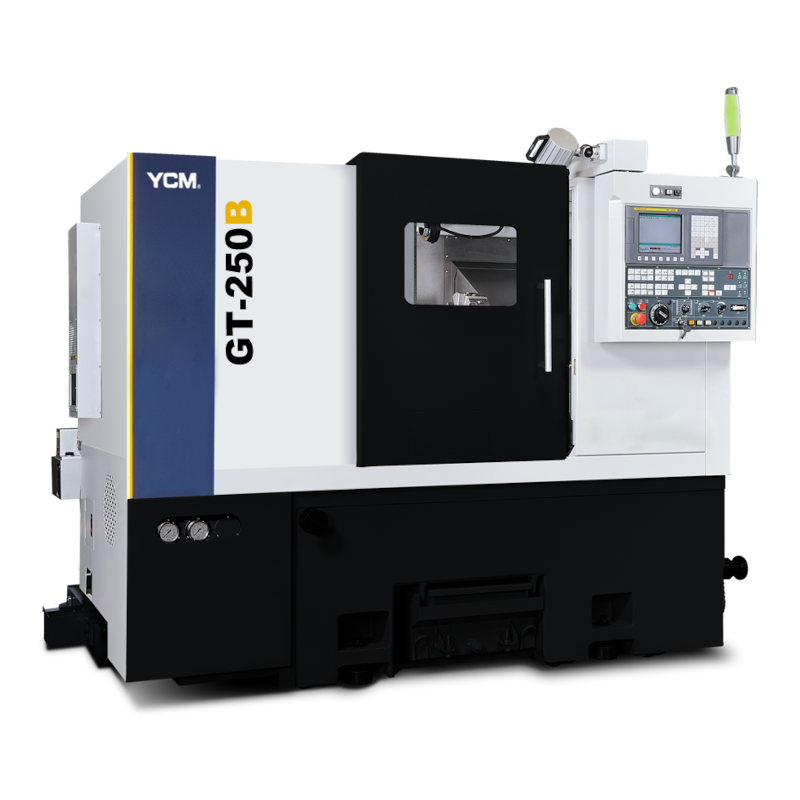

GT-250B

YCM ALLIANCE GT-250B

CNC LATHE MACHINING CENTER
Specifications
Chuck:
10″
Swing Over Bed:
Ø 21.65″ (Ø 550mm)
Swing Over Carriage:
Ø 16.54″ (Ø 420mm)
Max. Turning Diameter:
Ø 13.78″ (Ø 350mm)
X/Z Travel:
7.68″/20.28″ (195/515mm)
Max. Spindle Power:
15kW (20HP)
Spindle Nose:
A2-8
Spindle Speed:
3,500 rpm
Hole Through (draw bar):
Ø 2.95″ (Ø 75mm)
Tail Stock Quill Taper (opt.):
MT-5, Fixed Type (MT-4 Rotary Type)
Turret Capacity:
10T
Machine Weight:
13,669 lb (6,200kg)

NTC-2000LSY

YCM ALLIANCE NTC-2000LSY

CNC LATHE MACHINING CENTER
Specifications
Chuck Size:
8″/6″
Swing Over Bed:
Ø 28″ (Ø 710mm)
Swing Over Carriage:
Ø 21.46″ (Ø 545mm)
X-Axis Travel:
6.3″ (6.1″+ 0.2″) 160mm (155 + 5) mm
Y-Axis Travel:
3.54″ (+1.97″/-1.57″) 90 (+50/-40)mm
Z-Axis Travel:
22.44″ (570mm)
B-Axis Travel:
25.59″ (650mm)
Max. Turning Diameter:
Ø 12.2″ (Ø 310mm)
Spindle Power (SP1/SP2):
30/11kW (40/15HP)
Spindle Nose (SP1/SP2):
A2-6/A2-5
Spindle Speed (SP1/SP2):
5,000/6,000 rpm
Hole Through (draw bar):
(SP1/SP2): Ø 2.6″/Ø 1.77″ ( Ø 66/Ø 45mm)
Live Tool Motor:
3.7 kW (5HP)
Live Tool Speed:
4,000rpm
Turret Capacity:
12T/BMT55
Machine Weight:
13,624 lb (6,180kg)

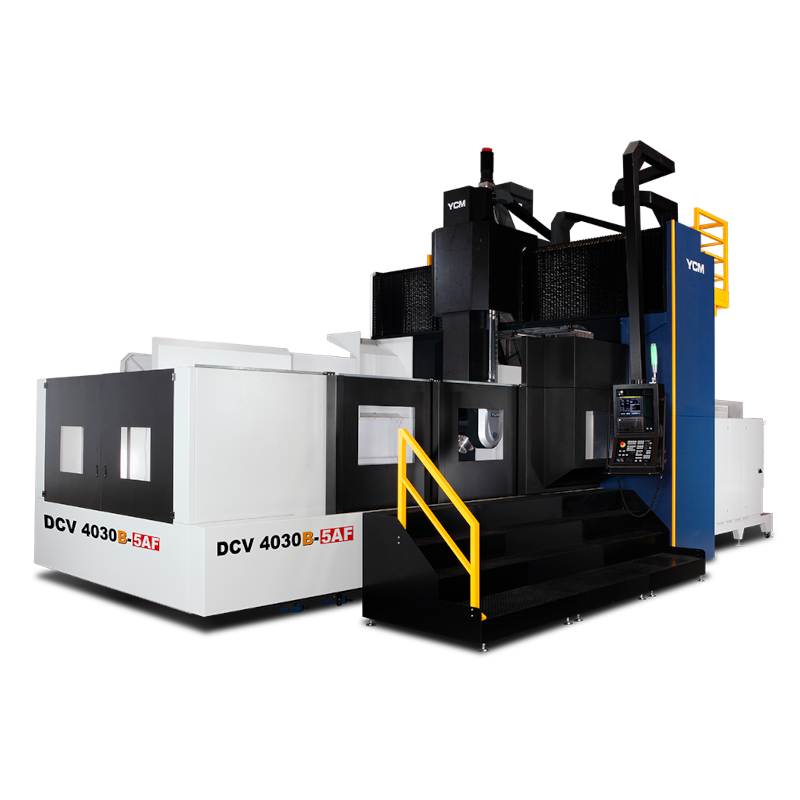

DCV4030B-5AF

YCM ALLIANCE DCV4030B-5AF

DOUBLE COLUMN MACHINING CENTER
Specifications
Table Size:
161.4” x 94.5” (4,100 x 2,400mm)
Travel (X, Y, Z):
160.04” x 137.8” x 40” (4,065 x 3,500 x 1,016mm)
Spindle Taper (opt.):
HSK A100
Spindle Speed (opt.):
10,000 rpm
Max Spindle Power:
43KW (57.6HP)
Tool Magazine Capacity (opt.):
40T (60/120T)
Machine Weight:
128,969 lb (58,500kg)

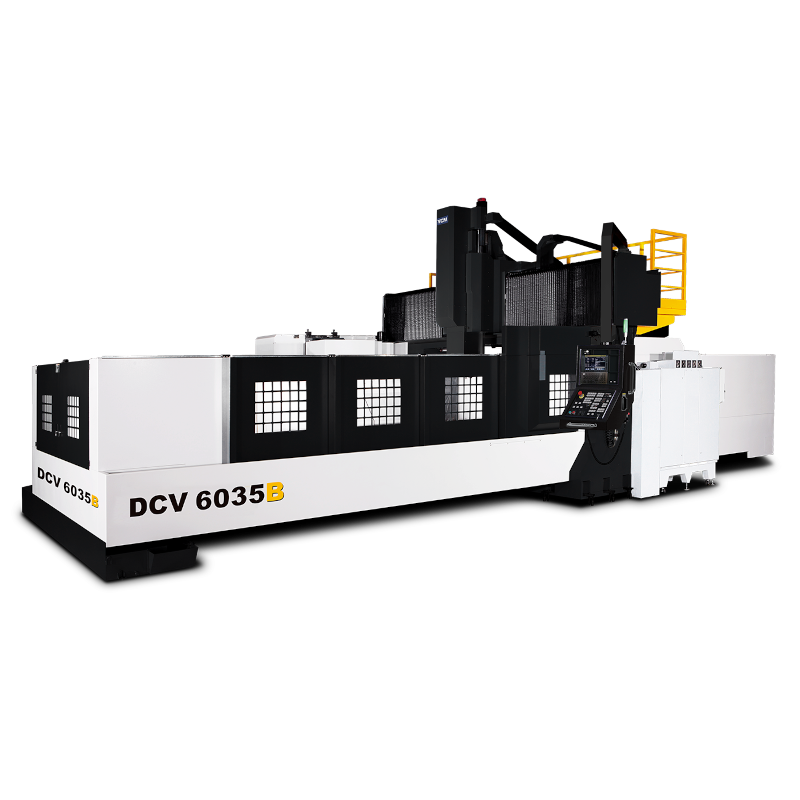

DCV6035B

YCM ALLIANCE DCV6035B

DOUBLE COLUMN MACHINING CENTER
Specifications
Table Size:
236.2” x 94.5” (6,000 x 2,400mm)
Travel (X, Y, Z):
244.1” x 137.8” x 30”
Travel (X, Y, Z) (opt.):
40” (6,200 x 3,500 x 762mm (1,016mm opt.)
Spindle Taper (opt.):
BBT50
Spindle Speed (opt.):
4,500 rpm (6,000/10,000 rpm)
Max Spindle Power:
22kW (29.5HP)
Tool Magazine Capacity (opt.):
40T (60/120T)
Machine Weight:
142,197 lb (64,500kg)
