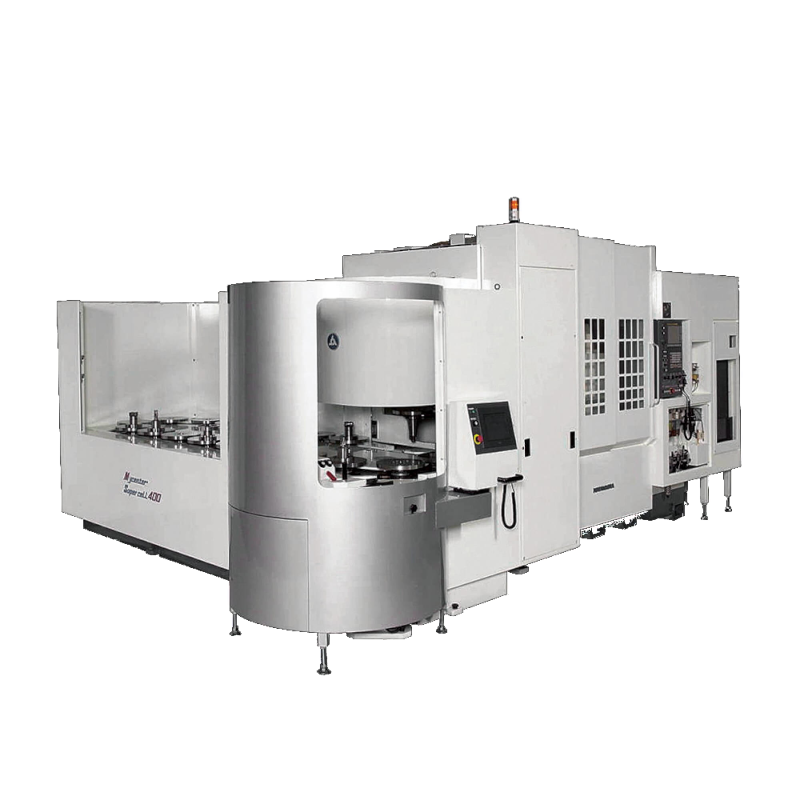

Mycenter-Supercell 400G

Kitamura Supercell-400G

5-AXIS VERTICAL MACHINING CENTER
Specifications
Table Size:
13.8” (350mm) Round
Travel (X, Y, Z):
20.1” x 20.1” x 20.1” (510 x 510 x 510mm)
Travel (A, B):
-120~+30 deg. /0~360 deg.
Spindle Taper:
NST No. 40
Spindle Speed:
20~20,000rpm
Tool Storage Capacity:
140 Pcs. (190, 290 Opt.)
Tool Change Time (T-T/C-C):
2.1 sec. /5.0 sec.
Rapid Feed (X, Y, and Z):
1969ipm (50m/min)
Rapid Feed (A, B):
2,400deg./min (6.7rpm)/12,000deg./min (33.3rpm)
Power Requirement:
45KVA
Features
  • Horizontal configuration allows flexibility for single set-up, unmanned machining
  • Ultra high positioning Accuracy: ±0.000039”/full stroke, Repeatability: ±0.00002”
  • Ideal for both unmanned one-off and high quantity production
  • Standard 20-station automatic pallet changer with loading/unloading station (up to 120 pallets optional)
  • Highest grade Meehanite cast iron construction with solid box ways
  • Energy saving, high performance, high speed 20,000rpm, 4-step gear driven, dual contact spindle ensures rigidity
  • Work handling system reduces pallet load & unload time, allowing for just-in-time operation

Mycenter-Supercell 300G

Kitamura Supercell-300G

5-AXIS VERTICAL MACHINING CENTER
Specifications
Table Size:
7.9” (200mm) Round
Travel (X, Y, Z):
18.1” x 20.1” x 18.1”(460 x 510 x 460mm)
Travel (A, B):
-120 to +30 deg. /0~360 deg.
Spindle Taper:
NST No. 40
Spindle Speed:
200~20,000rpm
Tool Storage Capacity:
174 Pcs. (230,258,314 Opt.) Matrix Style
Tool Change Time(T-T/C-C):
1.3 sec. /2.5 sec.
Rapid Feed (X, Y, and Z):
2,362ipm (60m/min)
Rapid Feed (A, B):
18,000 deg./min (50rpm)
Power Requirement:
55KVA
Features
  • Horizontal configuration allows flexibility for single set-up, unmanned machining
  • Ultra high positioning Accuracy: ±0.000079”/full stroke, Repeatability: ±0.000039”
  • Ideal for both unmanned one-off and high quantity production
  • Standard 20-station automatic pallet changer with up to 80 pallets available as an option
  • Highest grade Meehanite cast iron construction with heavy duty roller linear guide way system
  • High speed, built-in, dual contact 20,000rpm spindle
  • Work handling system reduces pallet load & unload time, allowing for just-in-time operation

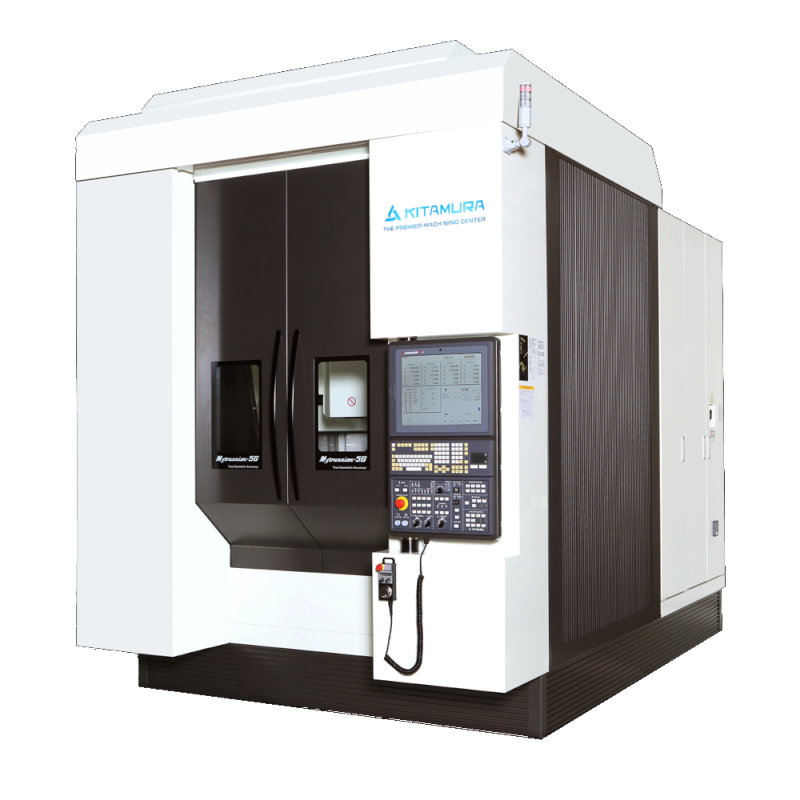

Mytrunnion‐5G

Kitamura Mytrunnion-5G

5-AXIS VERTICAL MACHINING CENTER
Specifications
Table Size:
24.8” round (630mm dia.)
Travel (X, Y, Z):
32” x 29.3” x 19.7” (815 x 745 x 500mm)
Travel (A, C):
-120~+30 deg. /0~360 deg.
Spindle Taper:
NST No. 40
Spindle Speed:
20~20,000rpm
Tool Storage Capacity:
50 Pcs. (100 Opt.)
Tool Change Time (T-T/C-C):
2.5 Sec. /5.0 Sec.
Rapid Feed (X, Y, Z):
1969ipm (50m/min) X & Y, 984ipm (25m/min) Z
Rapid Feed (A, C):
2,000 deg. /min, 6,000 deg. /min
Power Requirement:
45KVA
Features
  • Ideal for ultra-high precision simultaneous 5-axis machining
  • Positioning Accuracy: ±0.000039” Full Stroke, Repeatability: ±0.00002”
  • Sliding overhead door allows for easy workpiece loading/unloading
  • Powerful 4-step geared spindle delivers high torque and high speed for maximum machining flexibility
  • Linear scale feedback on all axes, A & B axis rotary scales
  • Highest grade meehanite cast iron construction with solid box ways

Mytrunnion‐4G

Kitamura Mytrunnion-4G

5-AXIS VERTICAL MACHINING CENTER
Specifications
Table Size:
15.7” (400mm) round dia.
Travel (X, Y, Z):
24” x 24” x 19.7” (610 x 610 x 500mm)
Travel (A, C):
-120~+30 deg. /0~360 deg.
Spindle Taper:
NST No. 40
Spindle Speed:
40~15,000rpm
Tool Storage Capacity:
60 Pcs. (Opt. 100T)
Tool Change Time (T-T/C-C):
2.2 Sec. /5.8 Sec.
Rapid Feed (X, Y, Z):
1969ipm (50m/min) X & Y, 985ipm (25m/min) Z
Rapid Feed (A, C):
18,000 deg. /min (50rpm)
Power Requirement:
45KVA
Features
  • Ideal for ultra-high precision simultaneous 5-axis machining
  • Positioning Accuracy: ±0.000079” Full Stroke, Repeatability: ±0.000039”
  • Sliding overhead door allows for easy workpiece loading/unloading
  • Powerful #40, 15,000rpm, 15HP Direct Drive, Dual Contact Spindle Optional HSK-A63 Spindle Configuration available
  • Highly Rigid, Ultra-High Precision Roller Gear Cam Table in the 4th & 5th Axes
  • Expansive 21.7″Dia. x 15.7″H (550 x 400mm) work envelope beats the competition
  • Highest grade meehanite cast iron construction for superior vibration absorption and improved surface finishes

Mycenter-3XVT

Kitamura Mycenter-3XVT

5-AXIS VERTICAL MACHINING CENTER
Specifications
Rotary Table Size:
8.7″ Diameter (220mm)
w/Full Table Length:
11.8″ x 19.7″ (300 x 500mm)
Travel (X, Y, Z):
30.7” x 20.1” x 17.3” (780 x 510 x 439mm)
Spindle Taper:
NST No. 40
Spindle Speed:
15,000rpm, Built-In, Dual Contact
Tool Storage Capacity:
40 Pcs.
Tool Change Time (T-T/C-C):
2.2 Sec. /4.2 Sec.
Rapid Feed (X, Y, Z):
1,890ipm (48m/min)
Power Requirement:
30KVA
Features
  • Built-in 4th/5th Axis Trunnion Table
  • Rigid solid Meehanite cast construction with THK heavy duty cross linear guide ways
  • High speed rapids of 1,890ipm (X, Y, Z) boosts work throughput
  • High speed, heavy duty 15,000rpm, built-in, 41HP, Dual contact spindle
  • Standard base wash system, internal chip augers and scraper type chip conveyor
  • Plumbed for coolant thru the spindle (220psi/1000psi option)
  • High speed processing Arumatik-Mi Pro control

MedCenter5AX

Kitamura MedCenter5AX

5-AXIS VERTICAL MACHINING CENTER
Specifications
Table Size:
6.7” (170mm) round dia.
Travel (X, Y, Z):
10” x 13” x 13”(254 x 330 x 330mm)
Travel(A, C):
-120~+120 Degrees/0 ~ 360 Degrees
Spindle Taper:
HSK-E40
Spindle Speed:
300~30,000rpm
Tool Storage Capacity:
40 Pcs.(120 Optional)
Tool Change Time (T-T):
1.5 Sec.
Rapid Feed (X, Y, Z):
2362ipm (60m/min) X & Y, 1969ipm (50m/min) Z
Rapid Feed (A, C):
36,000 deg. /min (100rpm), 72,000 deg./min (200rpm)
Power Requirement:
30KVA
Features
  • Ideal for ultra-high precision simultaneous 5-axis machining of small medical parts, micro machining
  • Positioning Accuracy: ±0.000079” Full Stroke, Repeatability: ±0.000039”
  • Compact design fits within a 4′ x 7′ footprint
  • Powerful high speed 30,000rpm HSK-E40 25HP Direct Drive Spindle
  • 40 tool, fixed pot ATC with maximum tool weight of 4.4Lbs
  • High accuracy package – Linear & rotary scales, 67 million pulse encoder technology, 16mm pitch ballscrews
  • Optional 12-station APC available (11″ x 11″ (280 x 280mm) table)

Bridgecenter-10G

Kitamura Bridgecenter-10G

DOUBLE COLUMN MACHINING CENTER
Specifications
Table Size:
53.9” x 118.1” (1,370 x 3,000mm)
Travel (X, Y, Z):
100.0” x 63.6” x 31.5” (2,540 x 1,615 x 800mm)
Spindle Taper:
NST No. 50
Spindle Speed:
35~12,000rpm Gear Drive, 4-Step
Tool Storage Capacity:
40 Pcs. (60, 80 Opt.)
Tool Change Time (T-T/C-C):
6.6 Sec. /14 Sec.
Rapid Feed (X, Y, Z):
945ipm (24m/min)
Power Requirement:
50KVA
Features
  • Well suited for large part machining requiring increased rigidity and higher levels of precision and accuracy. Perfect for roughing and finishing of large cavities and cores in the die/mold industry.
  • Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
  • Rigid Meehanite cast iron construction with induction hardened solid box ways
  • #50, Gear Driven, High Speed, High Torque 12,000rpm Dual Contact Spindle
  • Patented double column bridge type design provides expansive work envelope and superior rigidity
  • Linear scale feedback in X, Y, Z axes
  • Ultra high speed and high precision contour control for smoother and faster machining.2,800 block/sec. processing speeds
  • 13,300 Lb table capacity provides added benefits for larger, heavier, more powerful machining

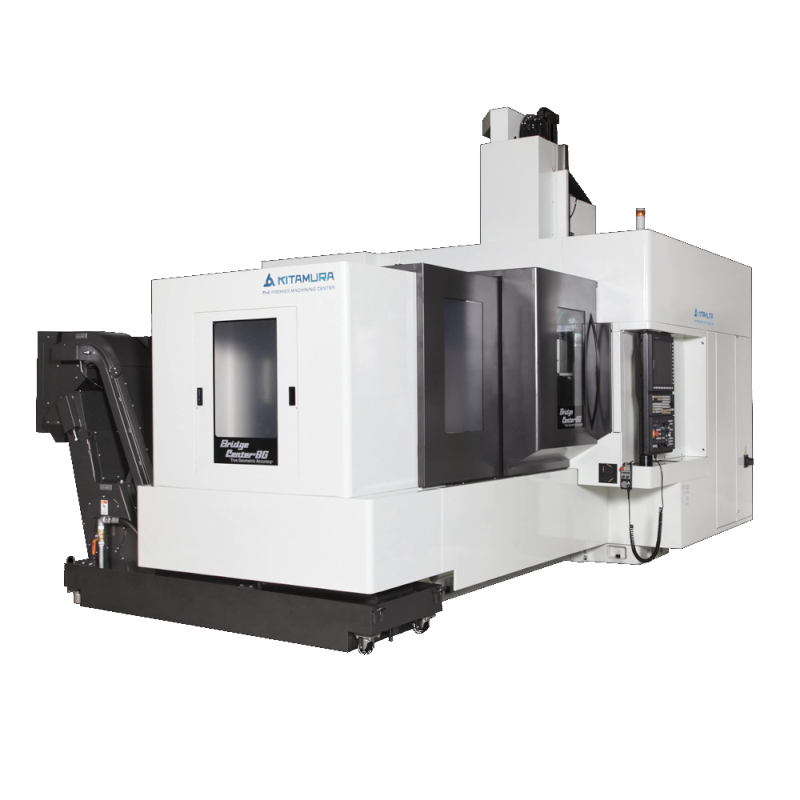

Bridgecenter-8G

Kitamura Bridgecenter-8G

DOUBLE COLUMN MACHINING CENTER
Specifications
Table Size:
35.4” x 98.4” (900 x 2,500mm)
Travel (X, Y, Z):
80.0” x 43.1” x 28.0” (2,032 x 1,095 x 710mm)
Spindle Taper:
NST No. 50
Spindle Speed:
35~12,000rpm Gear Drive, 4-Step
Tool Storage Capacity:
40 Pcs. (60, 80 Opt.)
Tool Change Time (T-T/C-C):
6.6 Sec. /12 Sec.
Rapid Feed (X, Y, Z):
945ipm (24m/min)
Power Requirement:
45KVA
Features
  • Ideal for parts requiring heavier cutting loads, and parts that require a higher level of precision and accuracy.
    Excellent for Die/Mold applications.
  • Positioning Accuracy: ±0.000078”/Full Stroke, Repeatability: ±0.000039”
  • Rigid Meehanite cast iron construction with induction hardened solid box ways
  • #50, High Speed, High torque 12,000rpm, Dual Contact, 4-Step Gear Driven Spindle
  • Double column design with patented triangular crossbeam provides expansive work envelope and superior rigidity when compared with C-Frame style machines
  • Linear scale feedback in X, Y, Z axes
  • Space saving and compact, the Bridgecenter-8G measures only 137.6″ x 230.9″ (3,494 x 5,866mm) on your floor!
  • 7,700 Lb table capacity allows for the capacity to machine larger and heavier work pieces

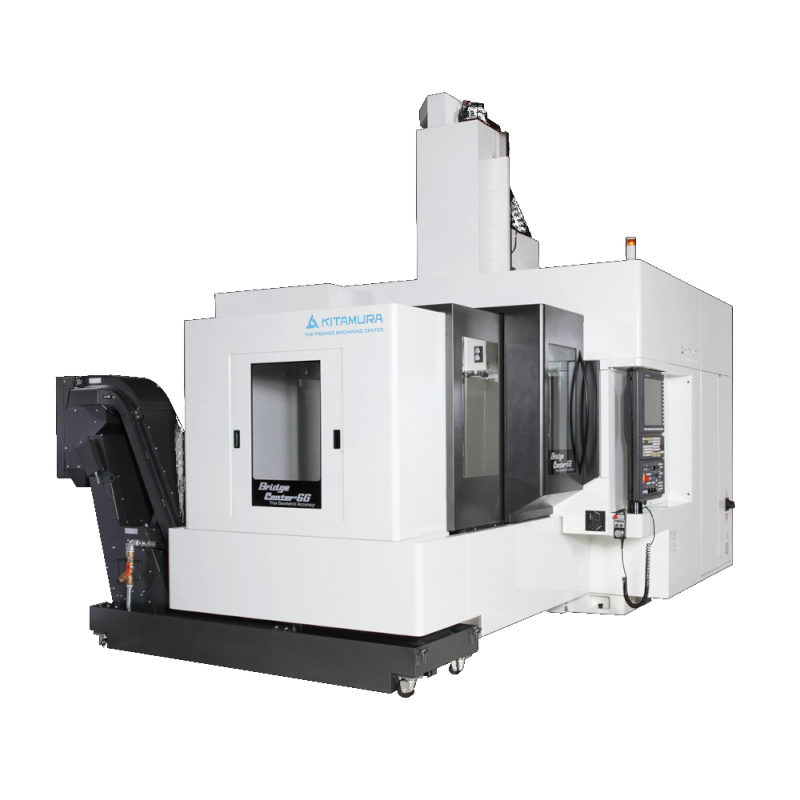

Bridgecenter-6G (40 & 50 Taper)

Kitamura Bridgecenter-6G (40 & 50 Taper)

DOUBLE COLUMN MACHINING CENTER
Specifications
Table Size:
35.4” x 70.9” (900 x 1,800mm)
Travel (X, Y, Z):
60.2” x 43.1” x 28.0” (1,530 x 1,095 x 710mm)
Spindle Taper:
NST No. 40
Spindle Speed:
20~20,000rpm Gear Drive, 4-Step
Tool Storage Capacity:
40 Pcs. (60, 80 Opt.)
Tool Change Time (T-T/C-C):
6.6 Sec. /12 Sec.
Rapid Feed (X, Y, Z):
945ipm (24m/min)
Power Requirement:
35KVA
Features
  • Ideal for parts requiring heavier cutting loads and higher levels of precision and accuracy. Excellent for Die/Mold applications.
  • Positioning Accuracy: ±0.000078”/Full Stroke, Repeatability: ±0.000039”
  • Rigid Meehanite cast iron construction with induction hardened solid box ways
  • #40, high speed, heavy duty 20,000rpm, 4-Step Geared, Dual Contact Spindle
  • Double column design provides expansive work envelope and superior rigidity
  • Linear scale feedback in X, Y, Z axes
  • Space saving footprint takes up only 166 total square feet
  • 6,600Lb table capacity
