Mycenter-HX300iG

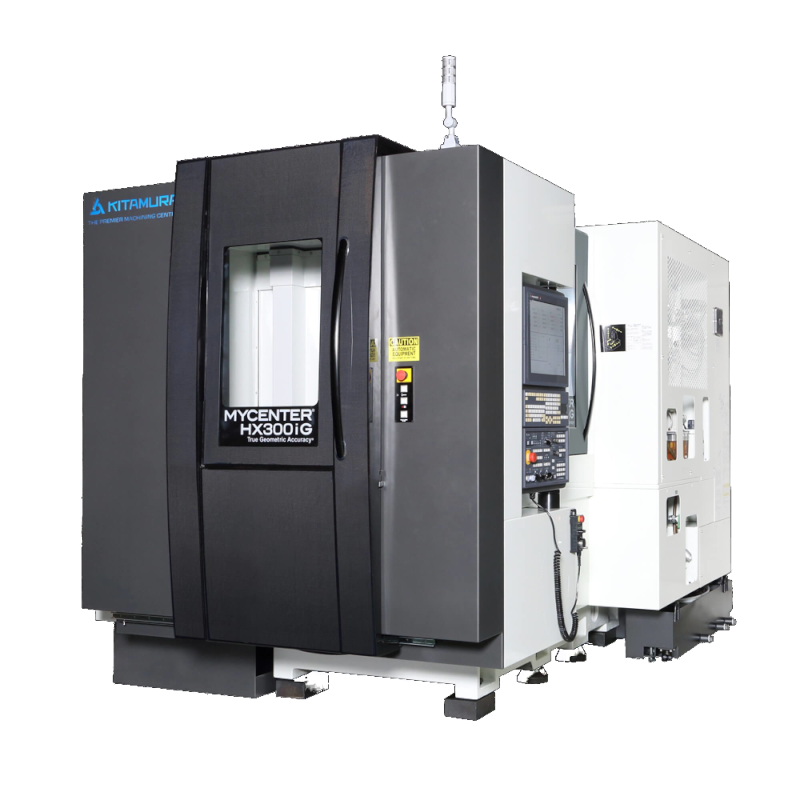

Kitamura Mycenter-HX300iG

HORIZONTAL MACHINING CENTER
Specifications
Table Size:
12” x 12” (305 x 305mm)
Travel (X, Y, Z):
18.1” x 20.1” x 22.0” (460 x 510 x 560mm)
Spindle Taper:
NST No. 40
Spindle Speed:
40~15,000rpm **20,000 Option
Tool Storage Capacity:
50 Pcs.- (100, 150, 200 Opt.)
Tool Change Time (T-T/C-C):
1.3 Sec. /2.5 Sec.
Rapid Feed (X,Y,Z)
2,362ipm (60m/min)
Rapid Feed (B)
54,000deg./min. (150rpm)
Power Requirement:
45KVA
Features
  • Drastically reduces set-up times for highly complex parts requiring multiple operations
  • Amazingly small footprint saves on valuable floor space
  • Positioning Accuracy: ±0.000079” Full Stroke, Repeatability: ±0.000039”
  • Ultra high speed rapid feed rates of 2,362ipm
  • High Speed 4th axis rotary table, Integral Motor Driven 54,000deg/min (150rpm) rapids
  • 2-Station APC is automation ready and field expandable up to 8 pallets for unmanned operation potential
  • High power, high-speed processing Arumatik-Mi CNC with 67 million pulse encoder technology
  • Powerful 15,000rpm, 30HP, dual contact spindle – Optional 20,000rpm spindle speed Available
  • Ballscrew Cooling and Linear Scale Feedback in all axes
  • The ability to add 400mm tables in the field as an option
