Showroom NFX400A

Written by Packard Machinery on . Posted in Blog.

YCM NFX400A

4+1 AXIS VERTICAL MACHINING CENTER
Specifications
Table Size:
13.77″ (350mm)
Travel (X, Y, Z):
25.6” (6500 mm) / 20.5” (520 mm) / 18.9” (480 mm)
Spindle Taper:
CT40 (Standard)
Spindle Speed:
12,000 rpm (15,000 rpm Option)
Tool Storage Capacity:
30 Pcs.
Tool Change Time (T-T/C-C):
1.8 Sec. /6.5 Secs
Rapid Feed (X,Y,Z)
1,417imp (36 m/min)
Max Spindle Power
22kW (17.5kW) 30HP (13.5HP)
Power Requirement:
46KVA
Features
  • Multi-Axis Vertical Machining Center
  • Provides Productivity and Flexibility on a high-performance platform
  • Rigid body structure and precision axial motion control ensure repeatable quality
  • Extra wide column base design to ensure cutting rigidity
  • Linear guideways adopted for fast and smooth axial motion
  • Pre-Tensioned ball screws with direct drive motors achieve high torque and low backlash
  • Rotary Table surface is at the same level as the 5th Axis centerline, ensuring machining accuracy

80th

Written by Packard Machinery on . Posted in Blog.

A great time was had at the Ocean Edge Resort & Golf Club celebrating Packard Machinery Co’s 80th Anniversary. Past and present employees gathered to raise a glass to our 8 decades providing world class technology to manufacturers throughout New England. We were pleased to be joined by representatives from Kitamura Machinery USA.  Thank you to everyone who made this possible, and here’s to the next 80 years.

  • BF3F8BCD-5411-47DB-B5B4-4C7D8CC9B286

  • 42D1B42A-BB34-46D2-8C8B-532AAADA75E8

  • 81BF1AA8-8336-4522-866E-4152C0803776

  • 862AA2A9-3132-4D1C-B01A-10B37DAEFDE4

Continue reading

EASTEC 2023

Written by Packard Machinery on . Posted in Blog.

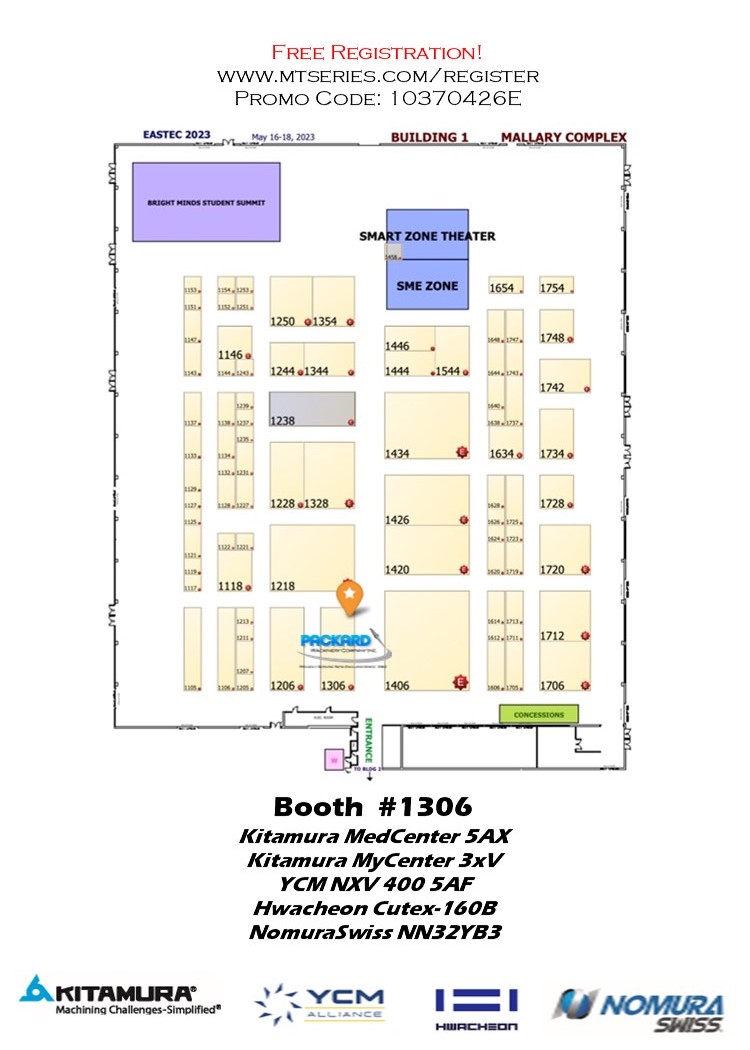

Packard Machinery Co. will return to exhibit at EASTEC 2023.  Please join us in Springfield, MA at the Eastern States Exposition.  We will be located in Booth #1306 in the Mallory Complex (Building #1).  Please see the below free registration code, machines that we will display, and other details. Feel free to contact us for additional information, or you can visit the EASTEC website at easteconline.com


Continue reading

Showroom MY3xV

Written by Packard Machinery on . Posted in Blog.

Kitamura Mycenter-3xV

VERTICAL MACHINING CENTER
Specifications
Table Size:
10” x 10” (254 x 254mm)
Travel (X, Y, Z):
12” x 12” x 13” (305 x 305 x 330mm)
Spindle Taper:
NST No. 30
Spindle Speed:
150~15,000rpm **30,000 Option
Tool Storage Capacity:
40 Pcs.- Expandable in the Field to 102 Tools!
Tool Change Time (T-T/C-C):
1.2 Sec. /2.8 Sec.
Rapid Feed (X,Y,Z)
2,362ipm (60m/min)
Rapid Feed (B)
108,000deg./min. (300rpm)
Power Requirement:
30KVA
Features
  • Ideal for machining small to medium sized work pieces
  • Large work envelope within a uniquely compact design
  • Thermally stable, heavily ribbed stiff cast Meehanite C-Frame construction
  • #40, 41HP, high speed 15,000rpm built-in spindle offers high speeds and heavy duty cutting capabilities
  • Standard scraper type chip conveyor can be installed on both right or left-hand side of the machine
  • High power, high-speed processing Arumatik-Mi CNC with 67 million pulse coder technology
  • Standard 30 tool high speed ATC
  • High Speed Processing Kitamura Mi-Pro CNC controller offers up to 16x faster processing speeds!

Showroom YCM GT-200B

Written by Packard Machinery on . Posted in showroom.

YCM GT-200B

CNC TURNING CENTER
Specifications
Swing Over Bed:
500 mm
Max Turning Diameter:
260 mm
Max Turning Length:
345 mm
Chuck Size:
8″
Spindle Nose:
A2-6
Max Spindle Speed:
4,500 RPM
Draw Tube:
52 mm
Tool Stations:
10
Power Requirement:
20 KVA
Features
  • The YCM GT-200B maintains high precision even during long-term processing by minimizing thermal displacement based on a rigid construction and compact structure.  The machine’s control software improves productivity, precision, and machining quality.

Showroom HX500iG

Written by Packard Machinery on . Posted in showroom.

Kitamura HX500iG/630

HORIZONTAL MACHINING CENTER
Specifications
Table Size:
500mm (Optional 630mm)
Travel (X, Y, Z):
34.4″ x 31.5″ x 36.6″
Spindle Taper:
NST No. 40 (50 Taper Available)
Spindle Speed:
20~20,000rpm, 4-Step Gear Drive
Tool Storage Capacity:
50 Pcs. (Optional 100, 150, 200)
Tool Change Time:
1.3 sec. /3.8 sec.
Rapid Feed Rate (X, Y, Z):
2,362ipm (60m/min)
Features

• #40 Taper, 20,000rpm and #50 Taper, 12,000rpm geared spindle configurations. HSK-A63 spindle available as an option

• Positioning Accuracy: ±0.000079”/Full Stroke, Repeatability: ±0.000039”

• Solid box way construction, linear scales on all axes and twin ballscrew design in the X & Y axes

• High speed 4th axis rotary table, Integral Motor Driven 43,200deg/min (120rpm) rapids

• World’s fastest rapid feed rates of 2,362ipm on induction hardened solid box ways

• Standard 2-station APC offers the ability to add pallets and pallet pool systems in the field

• Beats the competition in work envelope size and stroke!

• The ability to add 630mm tables in the field as an option
