Showroom Mycenter-4XV

Written by Web Admin on . Posted in showroom.

Kitamura Mycenter-4XV

VERTICAL MACHINING CENTER
Specifications
Table Size:
19.7” x 44.1” (500 x 1,120mm)
Travel (X, Y, Z):
40.2” x 20.1” x 20.1” (1,020 x 510 x 510mm)
Spindle Taper:
NST No. 40
Spindle Speed:
50~15,000rpm, Built-in
Tool Storage Capacity:
40 Pcs.
Tool Change Time (T-T/C-C):
2.2 Sec. /4.2 Sec.
Rapid Feed (X, Y x Z):
2,047ipm (52m/min) X/Y x 1,890ipm (48m/min) Z
Power Requirement:
30KVA
Features
  • Class Leading 40-Tool standard ATC
  • Large work envelope within a uniquely compact design
  • Thermally stable, Heavily ribbed stiff cast Meehanite C-Frame construction
  • #40, 41HP, high speed 15,000rpm built-in spindle offers high speeds and heavy duty cutting capabilities
  • Standard scraper type chip conveyor can be installed on either the right or left-hand side of the machine
  • High Speed Processing Kitamura Arumatik-Mi Pro controller offers up to 16x faster processing speeds!

NN-38UB8

Written by Web Admin on . Posted in nomura.

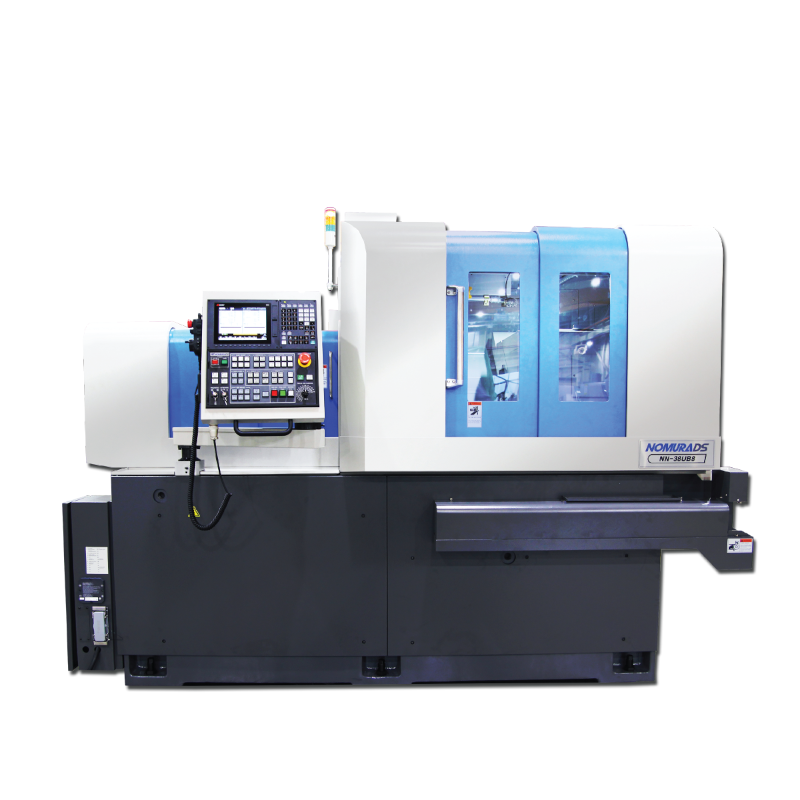

NOMURA NN-38UB8

CNC AUTOMATIC LATHES MACHINING CENTER
Specifications
Max. Stock Diameter:
38mm
Tool Stations:
30
Spindle Speed:
8,000 RPM
Spindle Power:
7.5/5.5KW
Number of Axes:
4
Axis Rapid Feed Rate:
28m/min & 30m/min

NN-32UB8

Written by Web Admin on . Posted in nomura.

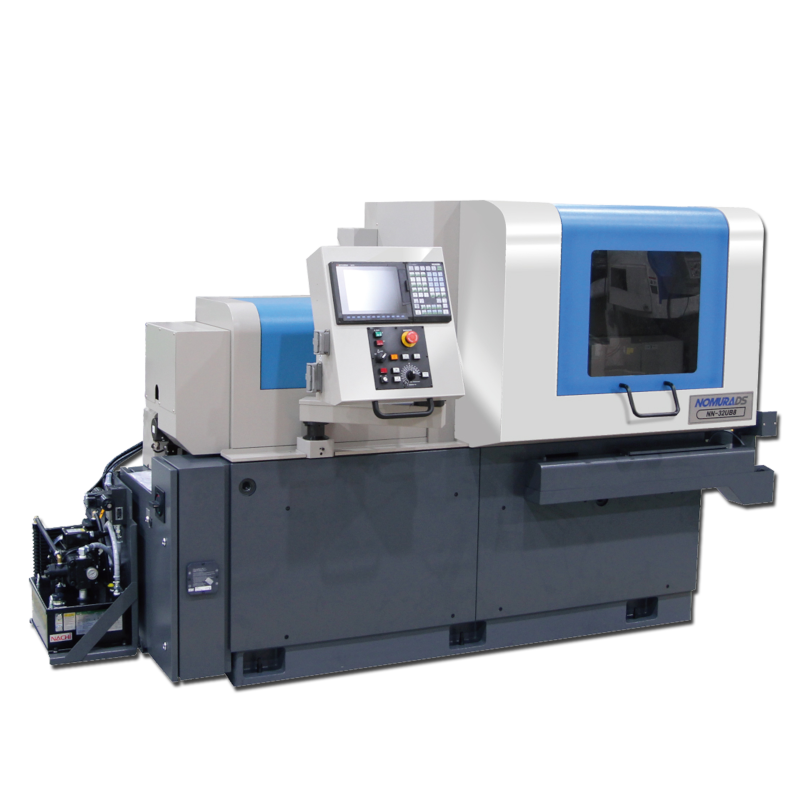

NOMURA NN-32UB8

CNC AUTOMATIC LATHES MACHINING CENTER
Specifications
Max. Stock Diameter:
32mm
Tool Stations:
23
Spindle Speed:
8,000 RPM
Spindle Power:
3.7/5.5KW
Number of Axes:
4
Axis Rapid Feed Rate:
28m/min & 30m/min

NN-16SB6

Written by Web Admin on . Posted in nomura.

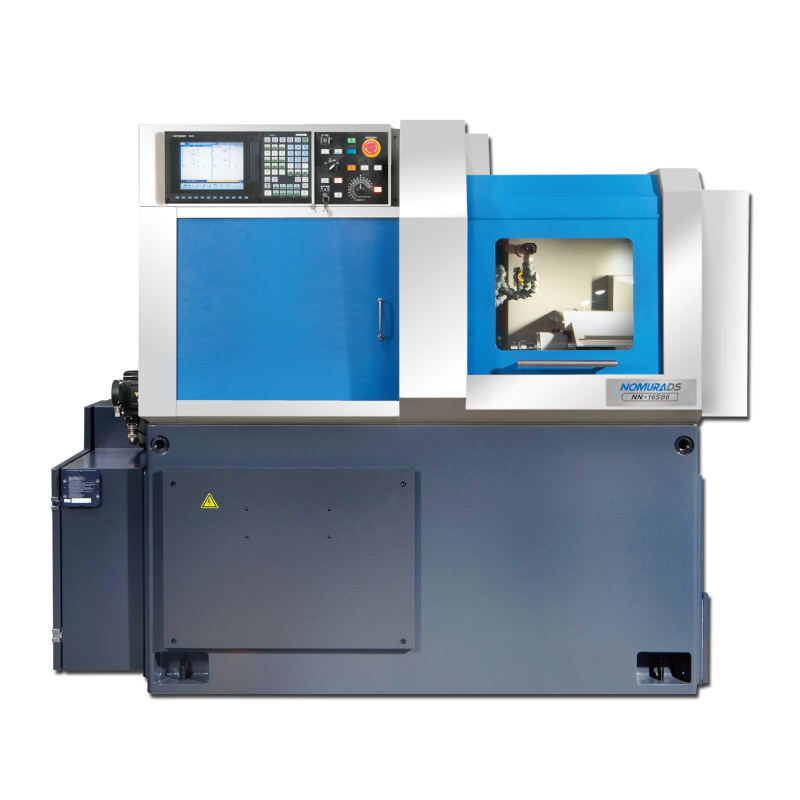

NOMURA NN-16SB6

CNC AUTOMATIC LATHES MACHINING CENTER
Specifications
Max. Stock Diameter:
16mm
Tool Stations:
16
Spindle Speed:
10,000 RPM
Spindle Power:
1.5/2.2KW
Number of Axes:
4
Axis Rapid Feed Rate:
24m/min

NN-20/25UB8

Written by Web Admin on . Posted in nomura.

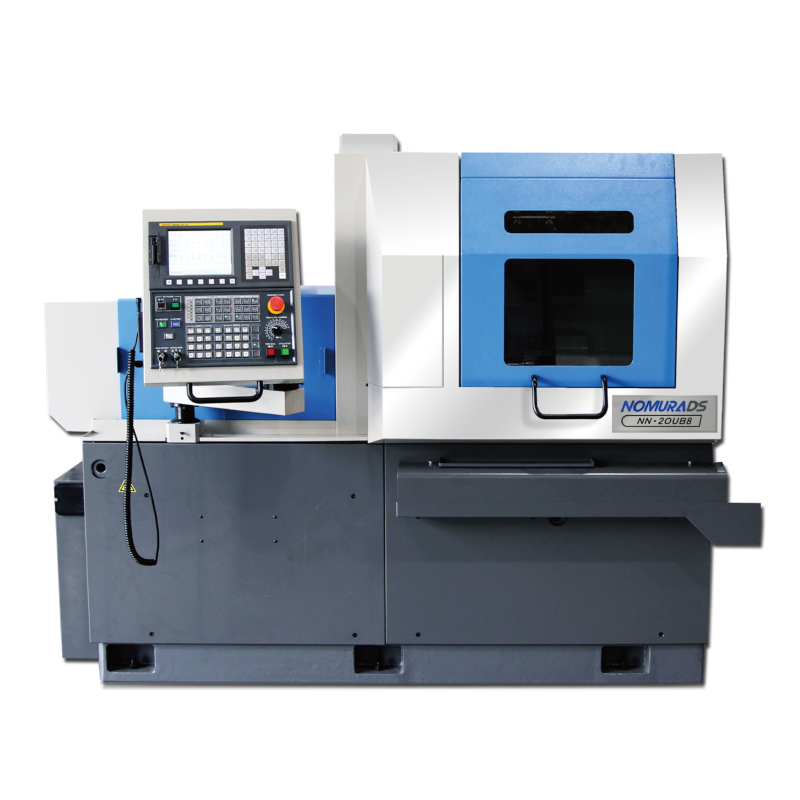

NOMURA NN-20/25UB8

CNC AUTOMATIC LATHES MACHINING CENTER
Specifications
Max. Stock Diameter:
20/25mm
Tool Stations:
17
Spindle Speed:
10,000 RPM
Spindle Power:
2.2/3.7KW
Number of Axes:
4
Axis Rapid Feed Rate:
36m/min
Coolant failure detector:
yes

CUTEX-160A

Written by Web Admin on . Posted in hwacheon.

HWACHEON CUTEX-160A

CNC LATHE MACHINING CENTER
Specifications
Chuck Size:
6.00″
Swing Over Bed:
21.65″
Max. Cutting Diameter:
11.81″
Max. Stroke (X/Z):
6.69″ / 13.19″
Max. Spindle Speed:
6,000.00 rpm
Spindle Nose:
A2-5
Through Spindle Hole Diameter:
2.20″
Spindle Motor:
15/10 HP
Quill Taper:
#4 MT
Number of Tool Station:
12.00 ea.
Machine Weight:
7,055.00 lb
Floor Space & Height (LxWxH):
93.43″ x 59.84″ x 67.72″

JC10

Written by Web Admin on . Posted in ycm alliance.

YCM ALLIANCE JC10

VERTICAL MACHINING CENTER
Specifications
Table Size (APC):
44.1” x 20.5” (1,120 x 520mm)
Travel (X, Y, Z):
40.2” x 20.5” x 21.3” (1,020 x 520 x 540mm)
Spindle Taper:
BBT40
Spindle Speed:
12,000 rpm (15,000 rpm)
Max Spindle Power (opt.):
18.5kW (18.5kW) 25HP (25HP)
Tool Magazine Capacity (opt.):
24T (30/40T)
Machine Weight:
11,795 lb (5,250kg)

Hi-TECH 230AL YMC

Written by Web Admin on . Posted in hwacheon.

HWACHEON Hi-TECH 230AL YMC

CNC LATHE MACHINING CENTER
Specifications
Chuck Size:
8.00″
Swing Over Bed:
29.53″
Max. Cutting Diameter:
15.75″
Max. Stroke (X/Z/Y/B):
9.45″ / 18.11″ (L:27.56″) / 4.72″ /
Max. Spindle Speed:
4,500.00 rpm
Spindle Nose (ASA):
A2-6
Through Spindle Hole Diameter:
2.99″
Spindle Motor:
25/20 HP
Center Taper:
#5 MT
Number of Tool Station:
12.00 ea.
Machine Weight:
9,700.00 lb
Floor Space & Height (LxWxH):
123.35″ x 75.77″ x 82.83″

JC16

Written by Web Admin on . Posted in ycm alliance.

YCM ALLIANCE JC16

VERTICAL MACHINING CENTER
Specifications
Table Size (APC):
68.1” x 29.9” (1,730 x 760mm)
Travel (X, Y, Z):
64.2” x 30” x 27.6” (1,630 x 762 x 700mm)
Spindle Taper:
BBT40
Spindle Speed:
12,000 rpm (15,000 rpm)
Max Spindle Power (opt.):
18.5kW (30kW) 25HP (40HP)
Tool Magazine Capacity (opt.):
24T (30/48/60T)
Machine Weight:
24,251 lb (11,000kg)
